  • squeaks Posts: 18
    Stock Poster squeaks
    16 Dec 2013 08:33 PM

    The sissy bar was from J&P Cycles it was origanialy for the softtail clip on mounts.

  • 98superglide Posts: 762
    Canberra,Sydney,Evans Head....
    Performance Poster 98superglide
    16 Dec 2013 09:36 PM
    Cheers. Looks great mate.
  • squeaks Posts: 18
    Stock Poster squeaks
    23 Dec 2013 10:01 PM

    Finished of my head light mount.
    HD Forums Australia - IMG_21411.JPG




    HD Forums Australia - IMG_21431.JPG


    HD Forums Australia - IMG_21481.JPG

  • walka Posts: 3386
    MELBOURNE
    Forum Legend walka
    24 Dec 2013 12:07 AM
    Now that awesome
  • squeaks Posts: 18
    Stock Poster squeaks
    24 Dec 2013 08:40 PM

    Christmas holidays are paying off getting a heap done reworked the sissy bar and the fender mount under the seat
    HD Forums Australia - IMG_21761.JPG






    HD Forums Australia - IMG_21631.JPG




    HD Forums Australia - IMG_21601.JPG

    From looking at the bike overall I think I might have to drop the headlight a bit.
    HD Forums Australia - IMG_21711.JPG

  • Dannyboy Posts: 65
    Stock Poster Dannyboy
    25 Dec 2013 08:51 PM
    NICE
  • El Skitzo Posts: 171
    Perth WA
    Stock Poster El Skitzo
    28 Dec 2013 04:59 AM
    Did you weld threaded bungs into your frame for the fender mount and seat spring bolts?
  • squeaks Posts: 18
    Stock Poster squeaks
    28 Dec 2013 04:55 PM
    No I just drilled and tapped holes.
  • El Skitzo Posts: 171
    Perth WA
    Stock Poster El Skitzo
    28 Dec 2013 06:03 PM
    Posted By squeaks on 28 Dec 2013 3:25 PM
    No I just drilled and tapped holes.

     For long term durability I'd highly recommend you do so before you paint or powdercoat your frame, likewise for your fuel tank mounts. I can't see what you've done for the rear mount, but that front mount definitely needs a crush tube welded through the frame. Threaded holes in frames don't provide a lot of thread for bolts to hold on too so are more prone to coming lose or stripping threads given the massive vibration that goes through them, and holes in frames also create weak spots where cracks can eventually appear.

    Do it right and you'll only need to do it once and it will last the life of the bike.

  • Scouser Posts: 1900
    Marion, South Australia
    Motor Head Scouser
    28 Dec 2013 06:46 PM

    As above,
    Its easy to make the bungs and just weld them in, dont forget the bike will vibrate quite a bit beong a hardtail so the more thread you have the better.

    Nice bike, I agree, I would drop the headlight quite a bit

  • terroristone Posts: 1774
    MeLbOuRnE - WeSt
    Motor Head terroristone
    13 Jan 2014 01:30 AM
    i concur with last 2 posts, plus i think the tank doesn't look right....too large/wrong shape not sure just doesn't look like its home on this bike,

    T1
  • squeaks Posts: 18
    Stock Poster squeaks
    21 Jun 2014 10:19 PM

    It's been a while since my last post since then i've change my tank to the smaller sporty tank so I could move my seat up the back bone abit to get a bit more travel out of the springs. I've run all my braided oil lines changed my rear fender over to a lowbrow one. Moddifeid the oil tank so that the battery box stits lower to alow room for my air bags for my seat. and sculpted a peice for my rear tail lights to sit mount on. I now am quiet happy with the height of the head light now I've put the taller tank on the whole bike feels more flowy now.


    HD Forums Australia - IMG_2590.JPG


    HD Forums Australia - IMG_2587.JPG


    HD Forums Australia - IMG_2582.JPG


    HD Forums Australia - IMG_2539.JPG


    HD Forums Australia - IMG_2545.JPG


    HD Forums Australia - IMG_2570.JPG


    HD Forums Australia - IMG_2580.JPG

  • walka Posts: 3386
    MELBOURNE
    Forum Legend walka
    23 Jun 2014 10:24 AM

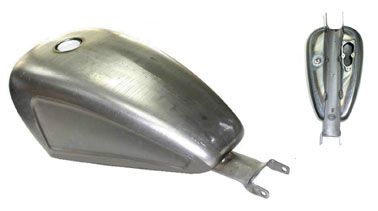

    That going to be a great looking bike once it's painted ..Zodiac have just released a 3.3 gallon EFI Sposter Tank with Indented sides $330.00

    [URL=http://s258.photobucket.com/user/raced86/media/Indented-Sportster-Gas-Tank_LRG_zps3a0f7720.jpg.html][/URL]

  • Sparra Posts: 1993
    Motor Head Sparra
    12 Nov 2014 07:11 AM

    Did this bike ever get finnished???

  • walka Posts: 3386
    MELBOURNE
    Forum Legend walka
    14 Nov 2014 03:35 PM

    The last update I got on it was it was on it's way for  it's first engineer inspection



  • Neale Posts: 440
    Richmond NSW
    Stage 1 Poster Neale
    02 Dec 2014 08:49 AM

    Looking good !!!

  • squeaks Posts: 18
    Stock Poster squeaks
    18 Sep 2015 05:55 PM

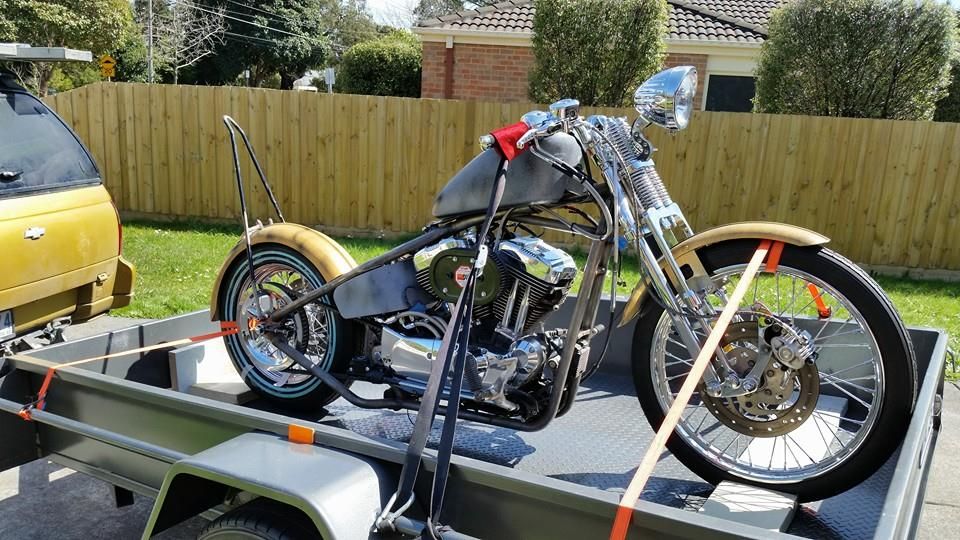

    II haven't finished it yet but heres some of the latest photo's because I'm painting it myself it's taking probably three times longer than it should.
    HD Forums Australia - 20150916_183848.jpg


    HD Forums Australia - 20150916_183230.jpg


    HD Forums Australia - 20150916_183318.jpg

  • squeaks Posts: 18
    Stock Poster squeaks
    18 Sep 2015 06:19 PM

    I also had a crack at making an exhaust i've just got to figure out how to baffle it.


    HD Forums Australia - 20141222_151208.jpg


    HD Forums Australia - 20141222_151155.jpg

  • TJU Posts: 1180
    Logan , Qld .
    Performance Poster TJU
    20 Sep 2015 11:31 AM
    Been following your build for awhile now ... not sure if I missed a post or not but how did the whole engineering test go ... everything pass OK or are some mods needed ... paint looks nice as well ... pipes are going to be Loud , Lol .

  • squeaks Posts: 18
    Stock Poster squeaks
    20 Sep 2015 07:17 PM

    I kind of decided I couldn't be bothered enginering it because club plates are so easy to get in vic and it's only costing me $140.00 a year as apose to $700 for full reg


    HD Forums Australia - 20141215_165506.jpg
